The product provides stable and safe power support for a variety of devices, and is suitable
for outdoor, emergency, and mobile power supply scenarios.
Beijing Huamaoshengde Technology Co., Ltd. (Sinolink Energy) is a technology-driven company with over 15 years of experience in the new energy sector, specializing in super capacitor technology and its commercialization in high-end energy applications.We specialize in the research, development, production, and sales of portable energy storage power supplies and automotive emergency jump starters, and are committed to providing global customers with safe, reliable, and efficient mobile power solutions.
Based on supercapacitor core technology, we provide high-power, fast-response, and reliable energy solutions for high-end new energy applications.

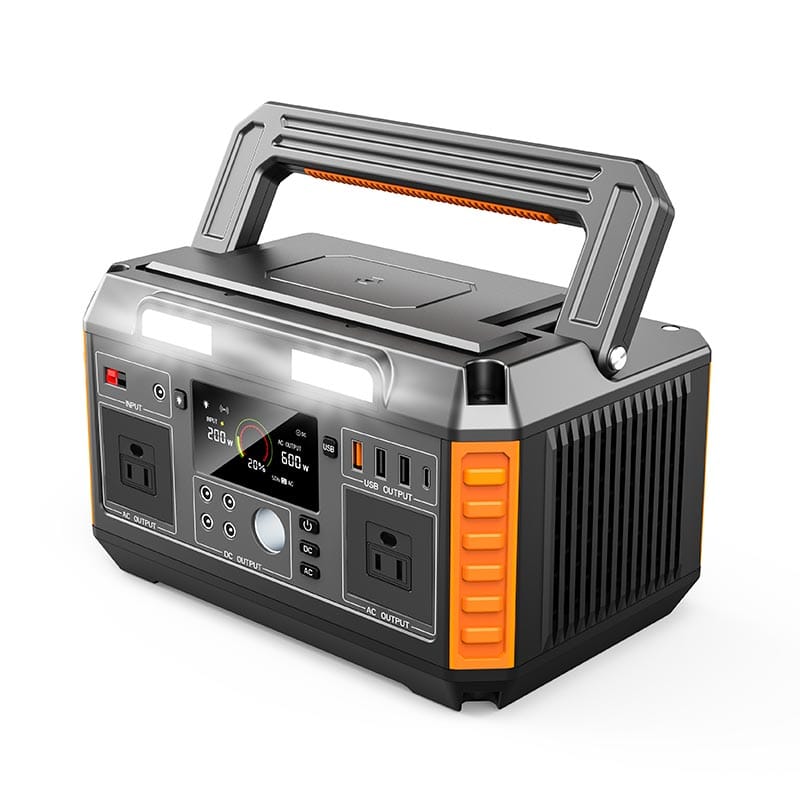

| Item | Name | A6 |
| Portable solar generator | ||
| General parameters | Built-in battery | High quality lithium ion battery |
| battery capacity | 520Wh / 140400mAh /3.7V | |
| input | DC DC5521 12V-26V/8A MAX120W | |
| anderson 12V-26V/8A MAX150W | ||
| TYPE-C口 5V-20V/3A MAX PD60W | ||
| Fully Charged Time | Single DC port charging: 4-5h Single Anderson port charging: 4h, single TYPE-C: 11-12h Anderson port+TYPE-C port combination simultaneous charging: 3-4h, DC port+TYPE-C port combination simultaneous charging: 4-5h | |
| DC output | USB 3.0：1 * USB 5V~12V/2A，USB； 2 * USB 5V/3.1A;Typ-c Port: 1 * Type-c 5V~20V/3A ; 5521 DC output: 4 * DC 13.5V/6A ; 1 * Cigarette Lighter adapter(13.5V/10A MAX150W) | |
| AC output | 2 x AC pure sine wave output | |
| AC continuous output power | 600W | |
| Constant power output voltage | 650W（85V-120V（160V-230V）） | |
| LED lighting | 4W | |

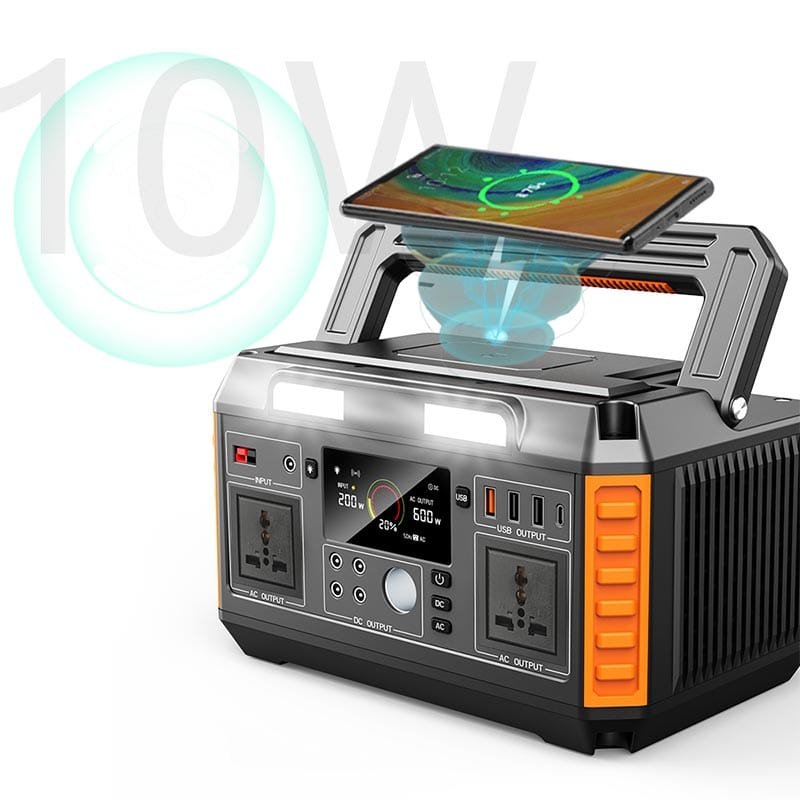

| Wireless charging | 15W | |
| Operating temperature | -10℃-40℃ | |
| Product protection | a.Short circuit protection b.Overcurrent protection c.Overvoltage protection d.Undervoltage protection e.Overload protection f.Over temperature protection | |
| Package included | 1 x portable solar generator 1 x power adapter1 x AC line 1 x user manual 1x Car charger | |
| Machine certification | PSE FCC CE ROHS MSDS UN38.3 Air transport report,Marine transportation report | |
| Adapter parameters | Output | 24V 5A |
| DC interface | 5521 | |
| shape | Desktop | |
| Input charging function | Support power adapter charging | Support |
| Support solar panel charging | Support | |
| Support car charging | Support | |
| Battery | Battery model specifications | 18650 |
| Single cell capacity | 2600 mah | |
| Battery series parallel | 6 series 9parallel | |
| Cell voltage | 3.7V | |
| Battery voltage | 22.2V | |
| Battery charge and discharge life | >1000 times，Capacity is maintained at approximately 80% | |
| structure | Product dimension CM | 288*198*166 mm |
| net weight | about 5.9kg | |
| Product color matching | Can be freely matched by customers (quantity required: 500 pcs ) | |
| Product packaging | Product packaging | carton |
| Carrying case dimension | 39.6*27.6*25.2cm | |
| Single carrying case weight | 7.5kg | |
| weight | 1 PCS/CTN |
